Ultrasonic Tank Level Gauges With Text Messaging - LC200 Series

The Secu Tech LC200 Series Ultrasonic Tank Level Gauges with Text Messaging are full-featured ultrasonic, tank mounted, digital fluid level gauges.

Communicates tank levels and high/low alarms via local display and your Smart Phone. Move over float arms and string gauges, this gauge has it all, with no moving parts!

Accurately measures levels of Diesel, Heating Oil, Lubricants, Water, Waste Water, DEF and more within 1 cm!

Choice of models to operate on batteries or external power for maximum convenience. These gauges are direct replacement for mechanical gauges.



FEATURES:

  • Sends SMS alerts and notifications via GSM network
  • Touch-less ultrasonic distance measurement
  • Typically used for: Diesel, Heating Oil, Lubricants, Water, Waste Water, DEF
  • Measuring distance 19-270 cm (7.5in - 106in)
  • Operating Temparature Range: -10°C – +45°C (14°F – 113°F)
  • Accuracy +/- 1cm
  • Intelligent SW Algorithm for stable and reliable measurement
  • No maintenance necessary
  • Reports fill level via Text Message (SMS): monthly, weekly, every 2 weeks, daily, on alarm
  • Can send text messages to up to two numbers
  • High & Low Level Alarms: message is sent to stored number
  • On Demand measurement can be triggered by text message being sent to the gauge
  • Settings can be adjusted through text messaging
  • Low power consumption
  • Automatic measurement every 24 hours, or manually immediately
  • Simple installation
  • 1.5 and 2 inch thread fits for most tanks
  • 3 types of tanks supported: square, horizontal cylinder, vertical cylinder (useable for 275  Gallon Tanks)
  • FREE SIM CARD INCLUDED (REQUIRES ACTIVATION) OR USE YOUR OWN!



tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

Operating Instruction Manual

Gallons Conversion Chart

SEE ORDER INFO BELOW

Secu-Tech Ultrasonic Tank Level Gauges

tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

LC200 Battery Operated Ultrasonic Tank Level Gauge with Text Messaging


tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

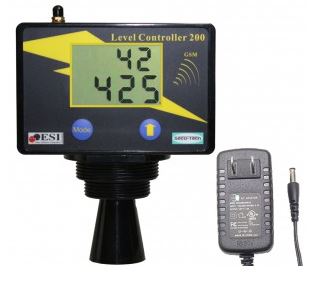

LC200 External Power Supply Ultrasonic Tank Level Gauge with Text Messaging


Two Models to Choose From

What's different about them?

LC-200--Tank Mounted, Battery Operated - Specification Sheet

LC-201--Tank Mounted, External Power Supply - Specification Sheet


OPERATION:

  • Ultrasonic measurement with no probes touching the liquid
  • Top-mounted
  • Multiple Measurements for dependable result
  • Power supply: Four C batteries (LC200) or an external power supply (LC201).
  • Warning-Signal for low voltage batteries
  • Measuring distance: 19cm - 270 cm (7.5in - 106in) distance to liquid top-level
  • Measuring every 24 hours automatically
  • Instant measurement upon button pressed

The Sensor needs to be mounted on top of the tank and must be sealed. Easily mounted and unmounted.

  These Tank-Level-Gauges are used for:

Diesel, Heating Oil, Water, Lubricants, Vegetable oil, Diesel Exhaust Fuel (DEF, AdBlue), Waste Water, other Liquids (Not recommended for gasoline)

FREE SIM CARD INCLUDED (REQUIRES ACTIVATION) OR USE YOUR OWN!

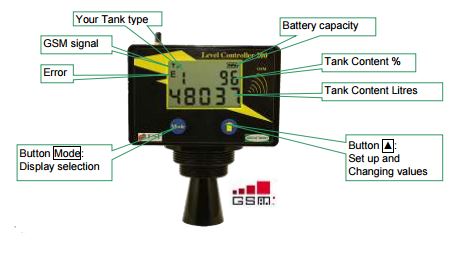

DISPLAY INFORMATION

tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

MEASUREMENT DISPLAY:

- Level in Gallons, Liters and Perecent

- Distance in inches (between sensor and liquid level)

- Empty Area in Tank in Liter/Gallons

- Average daily usage in Gallons

-Remaining days of supply

-Average consumption within the last 10 days

-Date & time

-Adjustable Tank Offset (distance to maximum filling level)

ORDER INFO

tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

Secu Tech LC200 Ultrasonic Tank level Gauge with Text Messaging - Tank Mounted, Battery Operated

FREE SIM CARD INCLUDED (REQUIRES ACTIVATION) OR USE YOUR OWN!

LC-200

$539

tank level gauge, tank level monitor, tank gauge, fuel tank gauge, smart phone tank monitor

Secu Tech LC201 Ultrasonic Tank level Gauge with Text Messaging - Tank Mounted, External Power Supply

FREE SIM CARD INCLUDED (REQUIRES ACTIVATION) OR USE YOUR OWN!

LC-201

$559
