the fuel minder™ store
Your # 1 Source for remote fuel-level indicators and accessories!
Fuel Minder Remote Oil Gauge System: 5 Year Parts Warranty
Fuel Minder™ offers:
RETROFIT KITS for tanks that are already equipped with a functioning Scully™ or OEM float gauge
- This kit enables you to simply replace the existing gauge lens with the Fuel Minder sending unit
- Retrofit kits come with sending unit, gauge, wiring, and power cord
COMPLETE FLOAT ASSEMBLY KITS to replace all existing gauges or for new tank installations
- The Complete Float Assembly comes with sending unit mounted on a float assembly, calibrated, and ready for installation into the tank. Also includes gauge, wiring and power cord.
- Offered for Vertical 275 or 350 gal. oil tank (42 in./44in. float length)
- Horizontal 275 or 350 gal. oil tank (26in./27in. float length)
- And In ground 1000 gal oil tank (48in float length)
- Custom lenth floats aslo available -Contact Us!
* All FLOATS ARE 1 1/2"- 2" NPT

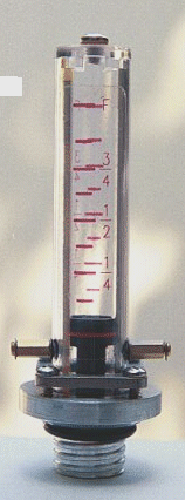

Sending Unit

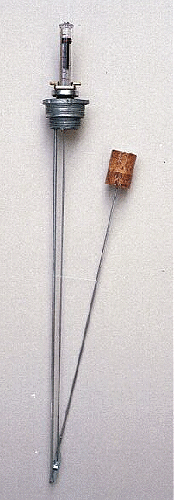

Complete Float Assembly
TWO STYLES OF GAUGES TO MATCH YOUR DECOR:
Tools Needed:
- Flat head screwdriver
- Wire cutters/strippers
- Allen wrench set
- Channel lock pliers
- 2 3/8" hole saw or keyhole saw
- Staple gun for small gauge wire
- Measuring tape
- Vise grip pliers
All kits come complete with:
- UL listed power supply, power board, polyethylene mount, mounting screws, spare fuse, calibration rod, 60 ft. of hookup wire, and installation instructions.
Deluxe brass gauge on oak wall plate
Easy read chrome gauge on white wall plate
